Mindray 5-Lead ECG Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735

Mindray 5-Lead Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735

Brief Introduction of Mindray 5-Lead Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735

Mindray EL6501B PN 0010-30-42735 ECG lead set is a 5-lead ECG cable ,it can be used on patient for Adult and pediatric .Its’ with snap buttons .

Specification of Mindray 5-Lead Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735

Area of application

It is used in conjunction with monitors, electrocardiographs, etc., and is connected between instruments and electrodes to transmit electrophysiological signals collected from the surface of the human body. Does not include provision for defibrillation protection.

Contraindications

It is prohibited to use this product if the skin has been injured or has not healed after surgery.

Notes, warnings

1. Before use, you should choose the appropriate type of ECG lead cable and check whether the attached instrument is compatible with this product. If it is not compatible it will not be used;

2. Please check whether the product is within the validity period before opening it;

3. Check the product for damage before use. If damaged, it will affect the signal collection function;

4. This product can only be handled and used under the supervision of a doctor or relevant technical personnel.

Instructions for use

1. Connect the instrument plug of the ECG cable to the ECG monitoring instrument, and the markings on each cable and the main cable should be consistent;

2. Clean, disinfect and dry the epidermis of the signal collection site;

3. Place the ECG electrode on the signal collection site;

4. Connect the lead cable to the ECG electrode. If the product is a button cable, you need to tie the ECG electrode and cable before placing the electrode on the signal collection site;

5. After the connection is completed, the detection operation can be started;

6. Wash with clean water, dry and set aside.

Product transportation

The product must be protected from strong pressure, rain and high temperatures during transportation.

Product care and maintenance methods

The product can be disinfected by rubbing it with alcohol if necessary and then removing any residue with a cloth soaked in water. Dry in the shade in a ventilated place and avoid wringing. Alcohol should not be used on neonatal leadwires or ambulatory ECG leadwires.

storage method

Store in an environment with a temperature of -10°C to +40°C, relative humidity ≤80%, without corrosive gases and good ventilation.

Thank you so much for your attention .If you're interested in Mindray 5-Lead ECG Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735 ,feel free to contact us .Thank you .

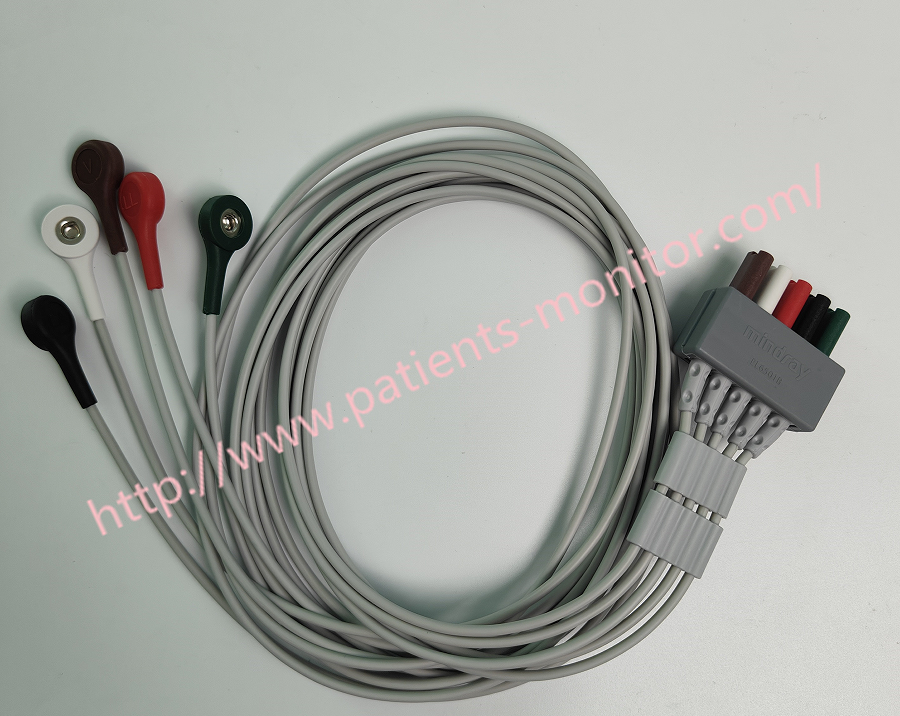

Mindray 5-Lead ECG Leadset Adt Ped AHA Snap EL6501B PN 0010-30-42735 Images
